FreeBSD find out RAM size Including Total Amount of Free and Used Memory Size

Posted on in Categories , , , , last updated September 21, 2016

How do I find out RAM size or memory size installed in my FreeBSD server? How do I display amount of free and used memory in the system powered by FreeBSD? How do I find out how much RAM is installed on a FreeBSD 10 or 11 server?

To displays the total amount of free and used physical and swap memory in the system, as well as the buffers used by the kernel you need to install special script or package. Most FreeBSD user use the sysctal command to get all data. There is a perl script that automates everything and display back result on screen.

Use sysctl command to find out how much RAM is installed on a FreeBSD

Type the following command:
$ sysctl hw.physmem
$ sysctl hw | egrep 'hw.(phys|user|real)'

OR
$ grep memory /var/run/dmesg.boot
Sample outputs:

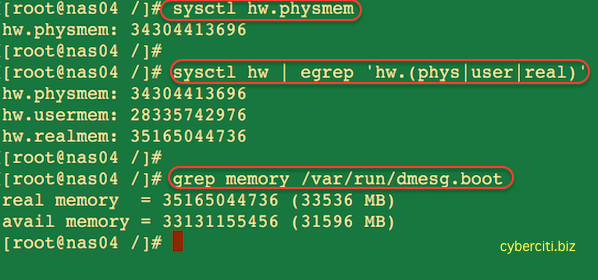

Fig.01: FreeBSD Command To Find How Much RAM is Installed On a Server
Fig.01: FreeBSD Command To Find How Much RAM is Installed On a Server

FreeBSD command about RAM size and information

This script query the system through the generic sysctl interface. The sysctl utility retrieves kernel state and allows processes with appropriate privilege to set kernel state. You must have perl installed on FreeBSD. First, download a Perl script which is written by Ralf S. Engelschall:
$ fetch http://www.cyberciti.biz/files/scripts/freebsd-memory.pl.txt
$ sudo mv freebsd-memory.pl.txt /usr/local/bin/free
$ sudo chmod +x /usr/local/bin/free

Make sure perl is installed on your system (which perl$ free
Sample outputs:

SYSTEM MEMORY INFORMATION:
mem_wire:          25341952 (     24MB) [  9%] Wired: disabled for paging out
mem_active:  +     47529984 (     45MB) [ 18%] Active: recently referenced
mem_inactive:+     15605760 (     14MB) [  6%] Inactive: recently not referenced
mem_cache:   +        16384 (      0MB) [  0%] Cached: almost avail. for allocation
mem_free:    +    165556224 (    157MB) [ 65%] Free: fully available for allocation
mem_gap_vm:  +       389120 (      0MB) [  0%] Memory gap: UNKNOWN
-------------- ------------ ----------- ------
mem_all:     =    254439424 (    242MB) [100%] Total real memory managed
mem_gap_sys: +      4988928 (      4MB)        Memory gap: Kernel?!
-------------- ------------ -----------
mem_phys:    =    259428352 (    247MB)        Total real memory available
mem_gap_hw:  +      9007104 (      8MB)        Memory gap: Segment Mappings?!
-------------- ------------ -----------
mem_hw:      =    268435456 (    256MB)        Total real memory installed

SYSTEM MEMORY SUMMARY:
mem_used:          87257088 (     83MB) [ 32%] Logically used memory
mem_avail:   +    181178368 (    172MB) [ 67%] Logically available memory
-------------- ------------ ----------- ------
mem_total:   =    268435456 (    256MB) [100%] Logically total memory

You can avoid Perl based code and use standard sh shell to get same info using freebsd-memory.sh script:
$ fetch https://raw.githubusercontent.com/ocochard/myscripts/master/FreeBSD/freebsd-memory.sh
## or use curl command ##
## $ curl -O https://raw.githubusercontent.com/ocochard/myscripts/master/FreeBSD/freebsd-memory.sh
$ sh freebsd-memory.sh

Sample outputs from my FreeBSD based home router:

SYSTEM MEMORY INFORMATION:
mem_wire:          70152192 (     66MB) [ 14%] Wired: disabled for paging out
mem_active:  +     44515328 (     42MB) [  9%] Active: recently referenced
mem_inactive:+    333316096 (    317MB) [ 67%] Inactive: recently not referenced
mem_cache:   +       798720 (      0MB) [  0%] Cached: almost avail. for allocation
mem_free:    +     44724224 (     42MB) [  9%] Free: fully available for allocation
mem_gap_vm:  +       -45056 (      0MB) [  0%] Memory gap: UNKNOWN
______________ ____________ ___________ ______
mem_all:     =    493461504 (    470MB) [100%] Total real memory managed
mem_gap_sys: +      9297920 (      8MB)        Memory gap: Kernel?!
______________ ____________ ___________
mem_phys:    =    502759424 (    479MB)        Total real memory available
mem_gap_hw:  +     34111488 (     32MB)        Memory gap: Segment Mappings?!
______________ ____________ ___________
mem_hw:      =    536870912 (    512MB)        Total real memory installed

SYSTEM MEMORY SUMMARY:
mem_used:         158031872 (    150MB) [ 29%] Logically used memory
mem_avail:   +    378839040 (    361MB) [ 70%] Logically available memory
______________ ____________ __________ _______
mem_total:   =    536870912 (    512MB) [100%] Logically total memory

Linux like free command for my FreeBSD server

Freecolor is a free replacement that displays free memory graphically as a bargraph. It supports the same options as free. Install freecolor, enter:
# cd /usr/ports/sysutils/freecolor
# make install clean

OR
# pkg install freecolor
To see memory details, enter:
$ freecolor -m -o
Sample output:

             total       used       free     shared    buffers     cached
Mem:          4082        825       3256          0          0        117
Swap:         2048          0       2047

$ freecolor -t -m -o
Sample output:

             total       used       free     shared    buffers     cached
Mem:          4082        825       3256          0          0        117
Swap:         2048          0       2047
Total:        6130 = (     826 (used) +     5421 (free))

The options are as follows:

       -b     Display the amount of memory in bytes.

       -k     Display the amount of memory in kilobytes.  This is the default.

       -m     Display the amount of memory in megabytes.

       -o     Display the output in old format, the only difference being this
              option will disable the display of the "buffer adjusted" line.

       -s     Continuously display the result delay seconds  apart.   You  may
              actually  specify any floating point number for delay, usleep(3)
              is used for microsecond resolution delay times.

       -t     Display a line showing the column totals.

       -V     Display version information.

Here is a sample demo from my server:

Gif.01: Find out how much RAM is installed on my FreeBSD box
Gif.01: Find out how much RAM is installed on my FreeBSD box

Use top command

The top display and update information about the top cpu processes including "Physical Memory Stats" as follows (from top(1) man page):

  1. Active: number of bytes active.
  2. Inact: number of bytes inactive.
  3. Wired: number of bytes wired down, including BIO-level cached file data pages.
  4. Cache: number of clean bytes caching data that are available for immediate reallocation.
  5. Buf: number of bytes used for BIO-level disk caching.
  6. Free: number of bytes free.

$ top
Sample outputs:

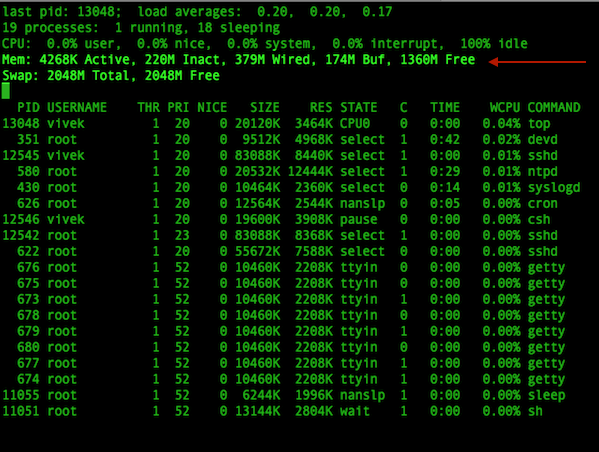

Fig.02 See memory usage using the top command.
Fig.02 See memory usage using the top command.

20 comment

  1. same thing as “sysctl -a|grep mem”

    great post though, most users have no idea how to obtain this information in FreeBSD

  2. Vivek, FreeBSD does not have wget by default. Maybe you should replace wget with fetch.

    It’s visible that you’re more used to Linux :P

  3. # freecolor -t -m -o
    total used free shared buffers cached
    Mem: 1514 535 978 0 0 1
    Swap: 2048 0 2048
    Total: 4294965248 = ( 3117 (used) + 3028 (free))
    Segmentation fault

    What’s wrong ??

  4. Hi,

    I have FreeBSD 7.2 AMD 64 bit vserion installed with 8G memory and when I use freecolor command it only displays 4Gig memory instead of 8Gig.

    # dmesg |grep mem
    real memory = 9395240960 (8960 MB)
    avail memory = 8391131136 (8002 MB)

    Is that freecolor command doesn’t support for more that 4G of RAM is installed.

    Thank you
    Manish

  5. It seems that freecolor doesn’t work on 64 bit systems:

    [root@ /usr/ports/sysutils/freecolor]# make install clean
    ===> freecolor-0.8.8 is marked as broken: Does not function correctly on !i386.
    *** Error code 1

    Stop.
    make: stopped in /usr/ports/sysutils/freecolor
